Equipment

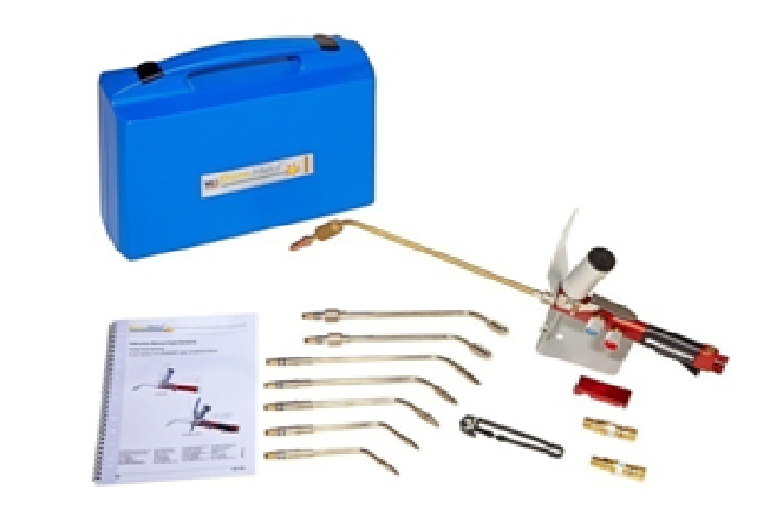

Fusejet PLUS Powder Welding System
The Fusejet PLUS powder welding torch is a robust manual powder welding system on surfaces and over edges. It is also applicable to deliver coating on larger parts when use with a custom designed extension assembly and tungsten carbide tip that enable high powder deposit to substrate.
Fusejet PLUS offers a high grade of coating to protect against abrasion, corrosion, erosion and cavitation that can be produced permanently and economically for low costs.
Metal powder are sprayed and melted into the surface by a gas/oxygen flame. Rockwell hardness ranging from 25-65 HRC are possible.
The following basic materials can be coated:
Stainless Steel, Grey Iron, Spheropheroidas Graphite Iron, Annealed Cast Iron and Alloy Steel
Highlights:
-Modular design
-Gas On / Off mode capability at handle = ease of usage during production
-Easy fit welding/heating attachments
-Powder cartridges reduce set-up time
-Easy to change in the field of application
-Cost efficient by using standard components and standard spare parts
-High level of operational safety
-Easy usage for difficult to reach components
-Tungsten Carbide inserts available (optional)
-Quick action couplings according to EN 561 for the gas hoses (optional)
-Safety devices according to EN 730 (optional)
-Accessories are easy to fit and to adjust
-Cost efficient operating materials (Acetylene, Oxygen)
-Hose packages and Pressure regulators (optional)
-Extension assembly with tungsten carbide insert for high powder deposition rate (optional
